High-efficiency pallet wrapping machine for logistics and manufacturing, ensuring superior load stability with a PLC-controlled turntable and adjustable speed.
Features a robust PLC control system for precise, adjustable control over winding layers and frequency.

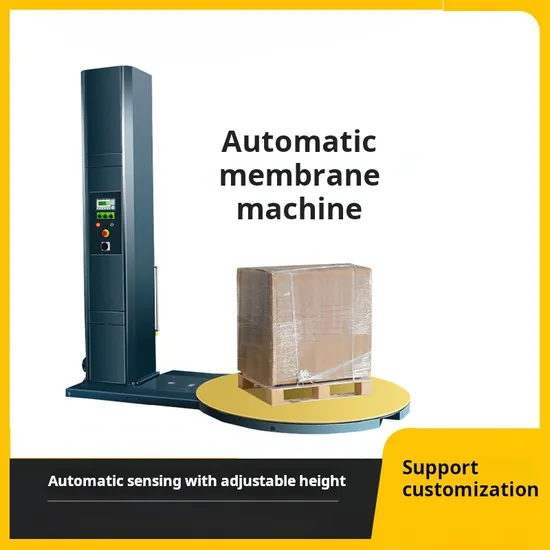

Automatically detects pallet height for efficient, complete wrapping with adjustable overhead settings.
Variable turntable speed (0-12 RPM) accommodates a diverse range of load types and stability requirements.
Engineered with a heavy-duty 1500 kg load-bearing capacity for demanding industrial environments.
Utilizes a mechanical resistance stretching method to ensure consistent film tension and load security.
Designed for standard 500mm wide stretch film (17-35um), ensuring compatibility with common consumables.
Load Bearing Capacity: 1500 kg
Turntable Diameter: 1500 mm
Maximum Winding Height: 2000 mm
Turntable Speed: 0-12 revolutions/min
Compatible Film Width: 500 mm
Power Supply: 220V, single-phase (customizable)
